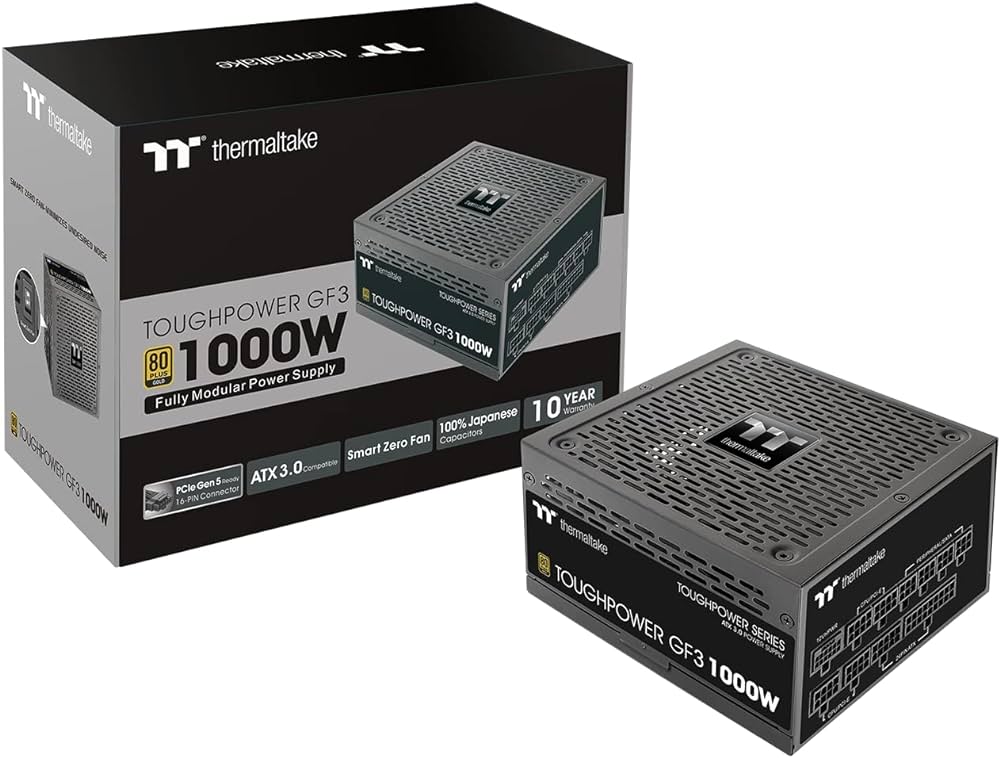

    Thermaltake Toughpower GF3 1000W Fully Modular 80 Plus Gold

    Manufacturer: Thermaltake
    Designed with a native PCIe 12+4pin connector, the Toughpower GF3 series is compatible with Intel ‘s ATX 3.0 specification and is built for next-gen PCIe 5.0 graphics cards. The wattage marked on 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of GF3 1000W can deliver up to 600W for PCIe 5.0 graphics cards. Note: Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.
    SKU: CPO0094
    Manufacturer part number: PS-TPD-1000FNFAGE-4
    Availability: 4 in stock
    €220.00 incl VAT
    i h

    WATTS 1000W
    MODEL TPD-1000AH3FCG
    MAX. OUTPUT CAPACITY 1000W
    COLOR Black
    DIMENSION ( W / H / D ) 150mm(W) x 86mm(H) x 160mm(D)
    WEIGHT 1.72 KG
    PFC (POWER FACTOR CORRECTION) Active PFC
    POWER GOOD SIGNAL 100-150 msec
    HOLD UP TIME > 17msec at 100% of full load
    INPUT CURRENT 13.0A / 6.5A
    INPUT FREQUENCY RANGE 50/60Hz
    INPUT VOLTAGE 100V – 240V~
    OPERATING TEMPERATURE 0°C to + 40°C
    OPERATING HUMIDITY 20% to 90%,non-condensing
    STORAGE TEMPERATURE -20°C to + 70°C
    STORAGE HUMIDITY 5% to 95%, non-condensing
    COOLING SYSTEM 13.5cm fluid bearing fan
    EFFICIENCY Meet 80 PLUS®Gold at 115Vac input.
    MTBF 100,000 hrs minimum
    SAFETY APPROVAL CE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/CCC
    PCI-E CONNECTOR
    PCIe 6+2pin x 4
    PCIe 12+4pin x 1
    PROTECTION OCP, OVP, UVP, OPP, SCP, OTP
