SERIES Core

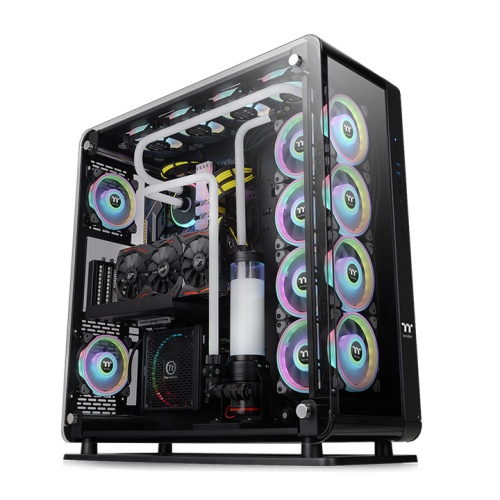

MODEL Core P8 TG
CASE TYPE Full Tower
DIMENSION (H X W X D) 660 x 260 x 626 mm (26 x 10.24 x 24.65 inch)
NET WEIGHT 22.6 kg / 49.8 lbs
SIDE PANEL Tempered Glass x 3 (4mm thickness)
COLOR Black
MATERIAL SPCC
DRIVE BAYS
-ACCESSIBLE 1 x 2.5’’ (with Pump Bracket)
-HIDDEN1 x 3 x 3.5’’ or 6 x 2.5’’ (With HDD Bracket)
EXPANSION SLOTS 8
MOTHERBOARDS
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
12” x 9.6” (ATX), 12” x 13”(E-ATX)
I/O PORT
1 x USB 3.1 (Gen 2) Type C, 2 x USB 3.0, x 2 USB 2.0, 1 x HD Audio
PSU Standard PS2 PSU (optional)
FAN SUPPORT
Front: 4 x 120mm or 3 x 120mm or 2 x 120mm or 1 x 120mm
3 x 140mm or 2 x 140mm or 1 x 140mm
Top: 4 x 120mm or 3 x 120mm or 2 x 120mm or 1 x 120mm
3 x 140mm or 2 x 140mm or 1 x 140mm
Rear: 1 x 120mm or 2 x 120mm ,
Right: 4 x 120mm or 3 x 120mm or 2 x 120mm or 1 x 120mm
3 x 140mm or 2 x 140mm or 1 x 140mm
Bottom: 4 x 120mm or 3 x 120mm or 2 x 120mm or 1 x 120mm
3 x 140mm or 2 x 140mm or 1 x 140mm
RADIATOR SUPPORT
Front: 1 x 480mm or 1 x 360mm or 1 x 240mm or 1 x 120mm
1 x 420mm or 1 x 280mm or 1 x 140mm
Top: 1 x 360mm or 1 x 240mm or 1 x 120mm
1 x 280mm or 1 x 140mm
Right: 1 x 480mm or 1 x 360mm or 1 x 240mm or 1 x 120mm
1 x 420mm or 1 x 280mm or 1 x 140mm
Bottom: 1 x 240mm or 1 x 120mm (With P5 DP-D5 ) ,
CLEARANCE
CPU cooler height limitation: 180mm
VGA length limitation: 280mm (With Reservoir) 320mm (Without Reservoir)
PSU length limitation: 200mm
