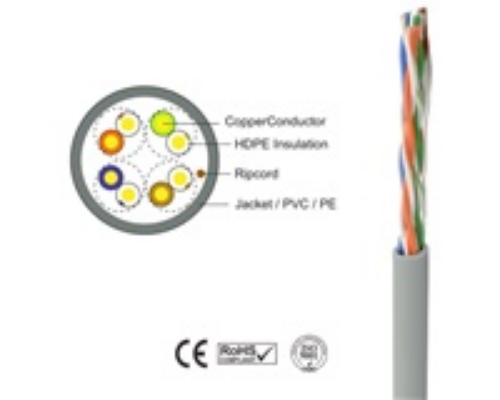

Model UTP CAT5 CABLE
Conductor Size 24AWG
Conductor Material /CCU/BC
Nuber Of Conductor 4P
Shiled UTP/FTP/STP/SFTP
Flammability Grade: CMP,CMX,CM,CMG,MPG,CMR,MPR
Indoor / Outdoor Single jacket/Double jacket
Insulation Material PE,HDPE,LSZH PE
Insulation Thickness 0.91mm
Jacket Material PVC, ROHS PVC, PVC
Outer Jacket Thickness 5.2mm
DC Resistance(Max.) 9.5 Ohm/100m
DC Resistance Imbalance 2.50%
Working Capacitance(Max.) 5.4nF/100m
Insulation Resistance 10000 MOhm.km
Transmission Velocity 65%
Operating Temperation -40 °C – +75 °C
