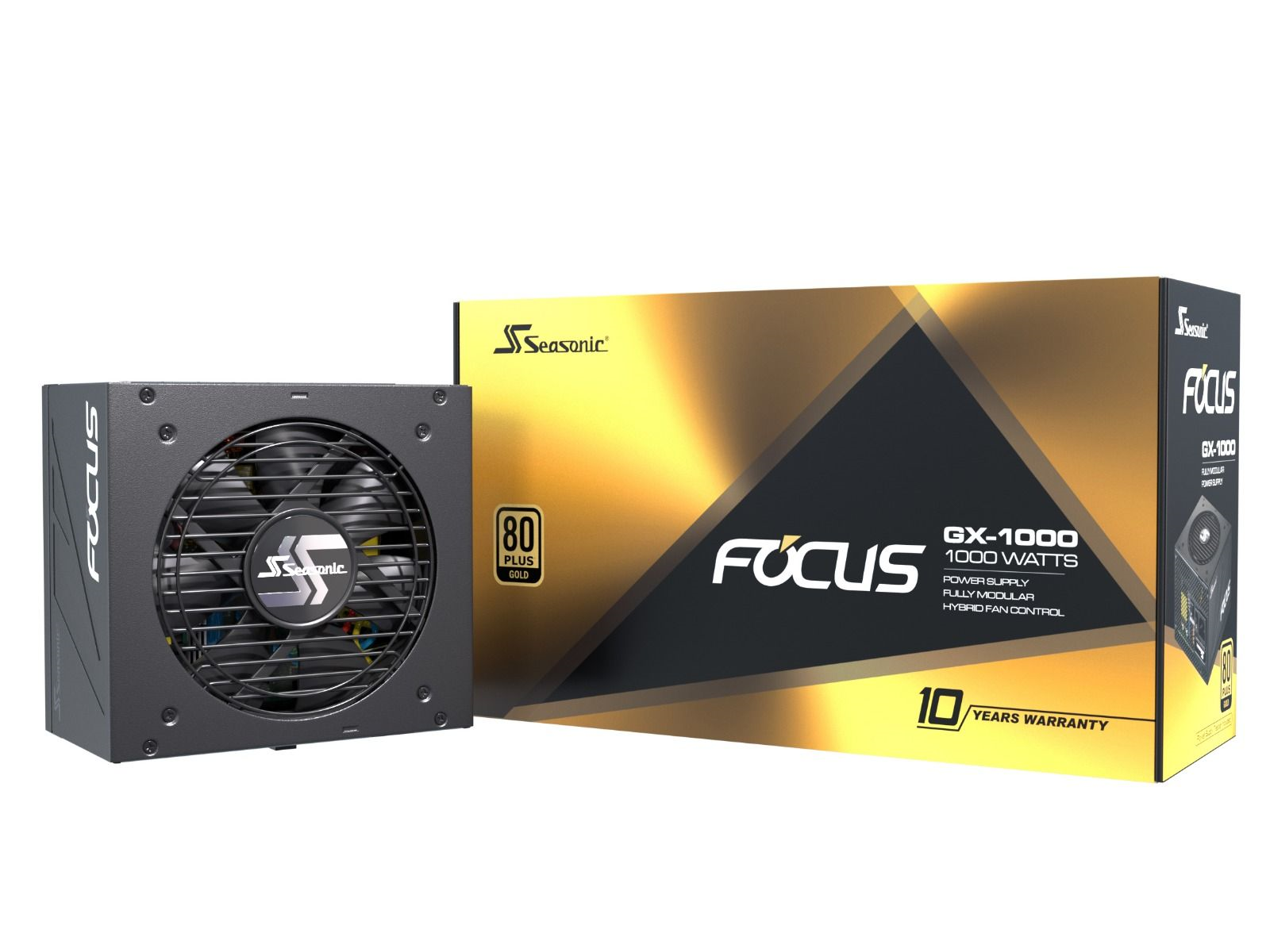

FOCUS-GX-1000
Technical Specifications
80PLUS® Gold
Cybenetics Efficiency Level TBA
Cybenetics Noise Level TBA
Form Factor Intel ATX 12 V
Dimensions 140 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information Fan Size 120 mm
Fan Control S3FC - Fanless until 30 % load
Fan Bearing Fluid Dynamic Bearing
Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information Modularity Fully Modular
Cable type Flat black cables
Electrical Features Operating Temperature 0 - 40 °C
MTBF @ 25 °C, excl. fan 100,000 hours
AC Input Full Range
Protection OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty 10 Years
Power Output
AC Input Voltage: 100 V - 240 V
Current: 13 - 6.5 A
Frequency: 50 Hz - 60 Hz
DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
Maximum Power 25 A 25 A 83 A 0.3 A 3 A
125 W 996 W 3.6 W 15 W
Total continuous power 1000 W
CABLES
FOCUS-GX-1000
Cable type Connector(s) per cable Total length (mm) Number(s) of cable(s) included
MB-610 MB (24/20 pins) 1 610 1
CPU-650 CPU (8/4 pins) 1 650 2
PCIe-750-2x PCIe (8/6 pins) 2 750 3
PCIe-750-1x PCIe (8/6 pins) 1 750 0
SATA-810-4x-90 SATA 4 810 1
SATA-800-4x-180 SATA 4 860 1
SATA-760-4x-90 SATA 4 760 0
SATA-700-2x-90 SATA 2 700 0
SATA-570-2x-180 SATA 2 570 0
SATA-470-2x-180 SATA 2 470 0
SATA-450-2x-180 SATA 2 450 1
Molex-690-3x Molex 3 690 1
Molex-470-2x Molex 2 470 1
Molex-to-SATA-3-3-300 Molex to SATA 3.3 Adapter 2 300 1
Molex-to-FDD-101 Molex to FDD Adapter 1 101 0
