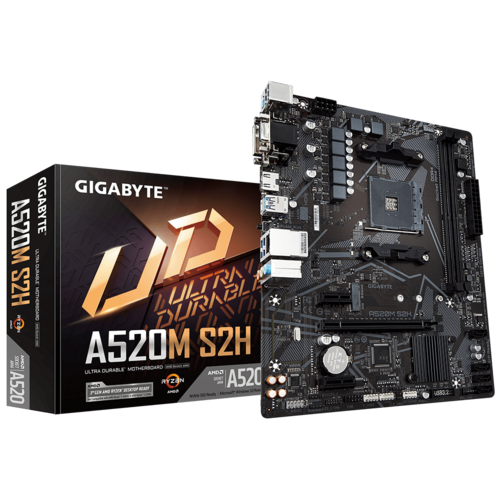

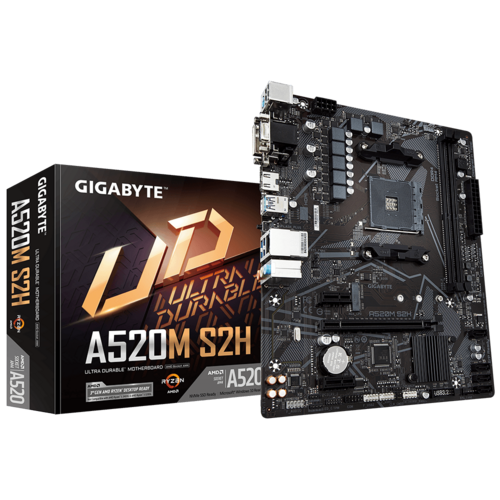

    Gigabyte A520M S2H AMD Socket AM4 Micro ATX Motherboard GAA52MS2H-00-G12

    Manufacturer: Gigabyte
    Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs 4+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management HDMI, DVI-D, D-sub Ports for Multiple Display RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card Anti-Sulfur Resistors Design
    SKU: CMB0195
    Manufacturer part number: GAA52MS2H-00-G12
    Availability: 5 in stock
    €60.30 incl VAT
    i h

    CPU
    AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
    (Please refer "CPU Support List" for more information.)
    Chipset
    AMD A520
    Memory
    2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
    * ECC memory (ECC mode) support varies by CPU
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
    Onboard Graphics
    Integrated Graphics Processor:
    1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
    1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
    Support for up to 3 displays at the same time
    Maximum shared memory of 16 GB
    Audio
    Realtek® Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
    LAN
    Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
    Expansion Slots
    CPU:
    1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
    Chipset:
    2 x PCI Express x1 slots, supporting PCIe 3.0
    Storage Interface
    CPU:
    1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
    Chipset:
    4 x SATA 6Gb/s connectors
    Support for RAID 0, RAID 1, and RAID 10
    USB
    CPU:
    4 x USB 3.2 Gen 1 ports on the back panel
    Chipset:
    2 x USB 3.2 Gen 1 ports available through the internal USB header
    6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    Internal I/O Connectors
    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    2 x system fan headers
    1 x addressable LED strip header
    1 x RGB LED strip header
    1 x M.2 Socket 3 connector
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    1 x serial port header
    1 x speaker header
    1 x chassis intrusion header
    1 x Clear CMOS jumper
    *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
    Back Panel Connectors
    1 x PS/2 keyboard/mouse port
    1 x D-Sub port
    1 x DVI-D port
    1 x HDMI port
    4 x USB 3.2 Gen 1 ports
    2 x USB 2.0/1.1 ports
    1 x RJ-45 port
    1 x Q-Flash Plus button
    3 x audio jacks
    I/O Controller
    iTE® I/O Controller Chip
    H/W Monitoring
    Voltage detection
    Temperature detection
    Fan speed detection
    Overheating warning
    Fan fail warning
    Fan speed control
    * Whether the fan speed control function is supported will depend on the fan you install.
    BIOS
    1 x 128 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Unique Features
    Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
    Support for Q-Flash Plus
    Support for Q-Flash
    Support for Xpress Install
    Bundled Software
    Norton® Internet Security (OEM version)
    Realtek® 8118 Gaming LAN Bandwidth Control Utility
    Operating System
    Support for Windows 11 64-bit
    Support for Windows 10 64-bit
    Form Factor
    Micro ATX Form Factor; 24.4cm x 20.5cm
